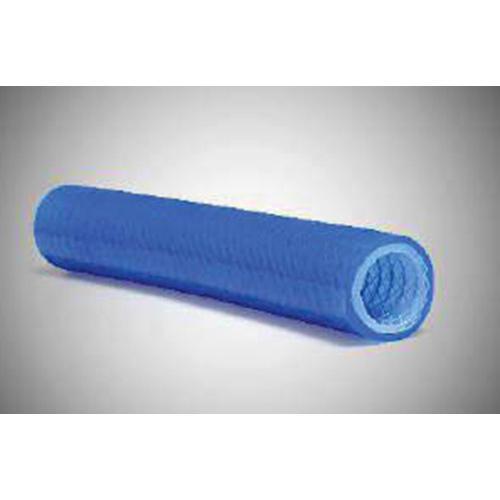

Silicone Helix Poly Wire Hose


Platinum Cured Silicone Hose Reinforced with Polyester Braiding and SS 316L Helical Wire

Platinum cured Silicone hose reinforced with SS 316L Helical wire and polyester braiding having better flexibility with high pressure resistance. having high burst pressure rating along with high vacuum resistance As Per compare to other Hose The product is suitable in pressurized fluid transfer application.

Application

• Pharmaceutical processing
• Powder and fuid transfer
• High vacuum pump applications
• Food processing
• Load cell application
• Biotechnology
• Bulk transfer
• Fermentations and bio-reactors

Certification

• Conforms to US FDA 21 CFR 177.2600 Food Grade Standard
• Conforms to USP Class VI
• ROHS certifed, free of restrictedheavy metals
• Animal Origin Certifcation (free of animal derived material)
• USFDA DMF No. 28363, 28364

Key Features

• Having high burst pressure resistance compare to other hose
• Designed for high vacuum rating applications
• Having Antistatic properties to dissipate static electrical charge makes it suitable for highly volatile ammable fuid transfer
• Imparts no taste and odor
• Lot traceable
• Temp Range: 80 °C TO 180°C
• Available with SS316 L Tri-clover end
• Sterilizable by Autoclave, Ethylene oxide gas & gamma Radiation

Sr. No. Size In MM (ID x OD) Size in Inch (ID) Max Working Pressure IN (Bar) At 27° C Min Burst Pressure IN (Bar) At 27° C Min Bend Radius In (MM) Vacuum Hg 27° C In (MM)
1 6x13 1/4” 12.5 48.5 60 760
2 9x16 11/32” 12.0 48.0 70 760
3 12x20 1/2” 11.0 41.5 70 760
4 16x24 5/8” 10.5 36.0 85 760
5 19x27 3/4” 9.0 35.0 95 760
6 25x35 1” 8.5 35.0 140 760
7 32x42 1 1/4” 8.5 35.0 150 600
8 37x47 1 1/2” 7.5 32.0 175 600
9 50x62 2” 6.5 30.0 245 550
10 64x76 2 1/2” 4.0 20.0 C/P 500
