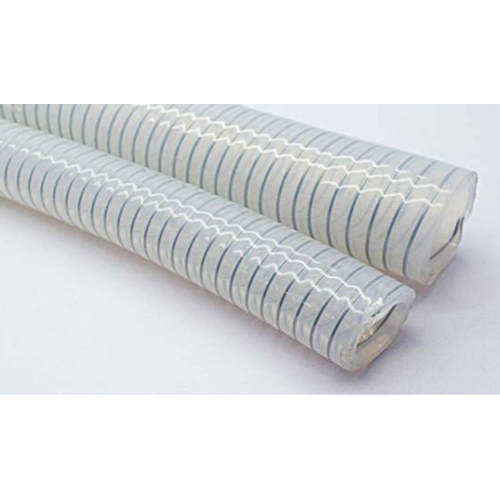

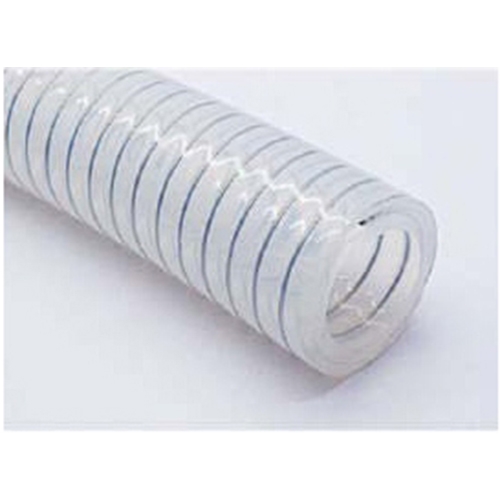

Silicone Helix SS Hose


Platinum Cured Silicone Hose Reinforced with SS 316L Helical Wire

Platinum cured Silicone hose reinforced with SS 316L Helical wire. It has better transparency to visualize low and kink resistance. it is designed for material transfer application under high vacuum in pharmaceutical industries. The product is more superior for high pressure & high vacuum rating applications. It is also used for antistatic application.

Application

• Pharmaceutical Processing
• Powder & fluid transfer
• High Vacuum applications
• Food Processing
• Load cell application
• Bulk transfer
• Biotechnology

Certification

• Conforms to US FDA 21 CFR 177.2600 Food grade Standard
• Conforms to USP Class VI
• ROHS certified, free of restricted heavy metals
• TSE/BSE Certification (free of animal derived material)
• USFDA DMF No. - 28363, 28364

Key Features

• High burst pressure resistance compare to other hoses.
• Designed for high vacuum rating applications
• Having Antistatic properties to dissipate static electrical charge makes it suitable for highly volatile fammable fuid transfer
• Imparts no taste and odor
• Lot traceable
• Temp Range: -80 °C TO 210°C
• Available with SS316 L Tri-clover end
• Sterilizable by Autoclave, Ethylene oxide gas & gamma

Sr. No. Size In MM (ID x OD) Size in Inch (ID) Max Working Pressure IN (Bar) At 27° C Min Burst Pressure IN (Bar) At 27° C Min Bend Radius In (MM) Vacuum Hg 27° C In (MM)
1 6x13 1/4” 12.0 48.0 50 760
2 9x16 11/32” 11.5 48.0 60 760
3 12x20 1/2” 10.5 45.0 70 760
4 16x24 5/8” 10 35.0 80 760
5 19x27 3/4” 8.5 30.0 90 760
6 25x35 1” 8.5 30.0 125 760
7 32x42 1 1/4” 8.0 27.0 140 600
8 37x47 1 1/2” 7.5 25.0 170 600
9 50x62 2” 6.0 22.0 240 550
10 64x76 2 1/2” 4.0 20.0 C/P 500
11 75x87 3” 3.0 15.0 C/P 400
12 100x112 4” 2.0 10.0 C/P 400
