Tri Seal Gasket
(Silicone/FKM/EPDM/PTFE)
CHARACTERISTICS
• Made from platinum cured silicone resin, FKM and EPDM.
• Conforms to FDA 21 CFR.177.2600.
• Conforms to USP Class VI requirements.
• Animal derived ingredient free.
• Tri Seal is available with collar for better grip and also without collar.

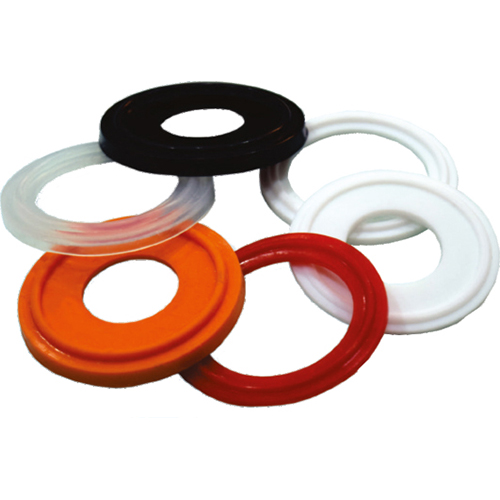

• Available in red/orange/white and transparent colors.
TYPES

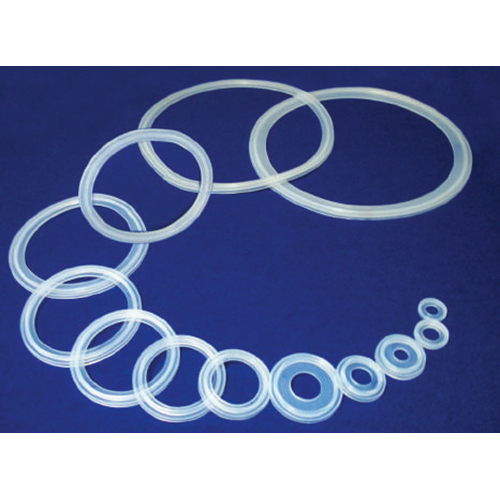

• Standard Tri-Clover Gaskets

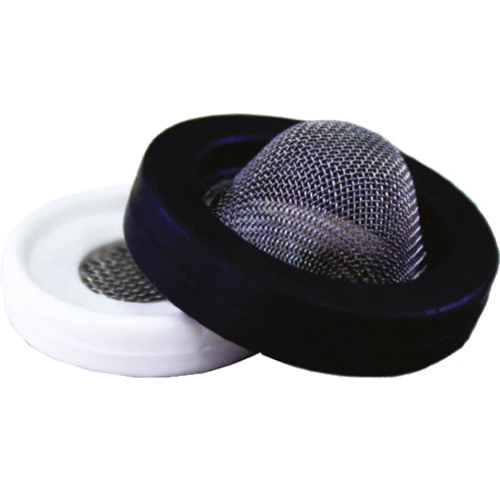

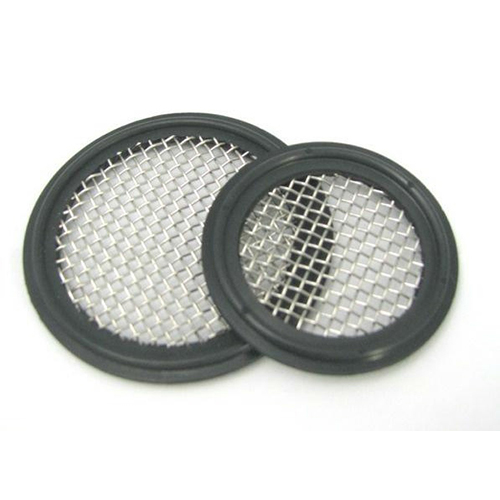

• Tri-Clover Gasket with SS Mesh
• PTFE Enveloped Gaskets
• Sensor Tri-Clover Gaskets
• Validation Tri-Clover Gaskets
| NORMAL SIZE | D3 | D4 | D5 |
|---|---|---|---|
| ½” | 34.0 | 27.5 | 10.9 |
| ½” A (Mini) | 22.0 | 17.0 | 09.5 |
| ¾” | 34.0 | 27.5 | 15.4 |
| 1” | 50.5 | 43.5 | 22.8 |
| 1 ½” | 50.5 | 43.5 | 35.8 |
| 2” | 64.0 | 56.5 | 48.8 |
| 2 ½” | 77.5 | 70.5 | 60.5 |
| 3” | 91.0 | 83.5 | 73.1 |
| 4” | 118.0 | 110.0 | 96.0 |
